| Price | RM19.00 - RM29.00 |
| Product SKU | MB-42 |
| Brand | Mybotic |
| Size (L x W x H) | 5 cm x 5 cm x 1 cm |
| Points Needed | 2100 |
| Availability | 46 |
|
Mybotic MB-42
|
|
| Quantity |
|
Features:
- Non-programmable kit.
- Microcontroller not required.
- Input Voltage is 6V - 9V.
- Self Assembly.
- Size: 50mm x 50mm
Description:

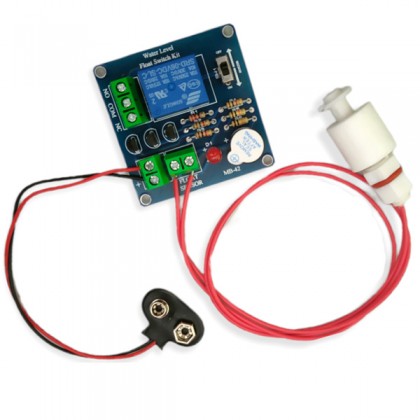

This MB-42 Water Level Float Switch kit is designed to detect the level of liquid. It comes with input pins which are one for power supply and float sensor to detect the level of liquid. The level of liquid detected by using float switch. Input voltage is 6V until 9V. Float switch connected to via Terminal block float sensor. When the float switch detect the liquid, the float switch will short circuit and turn on the Q1, Q2 and Q3 transistor and subsequently turn on the LED, Relay and Buzzer.
Example project for DIY Flooding Alarm:
The MB-42 Water Level Float Switch Hobby Kit are completed with the small buzzer, and it can be Switch ON/OFF of the buzzer if in need:
Features:
- Non-programmable kit.
- Microcontroller not required.
- Input Voltage is 6V - 9V.
- Self Assembly.
- Size: 50mm x 50mm
Packaging List:
- 1x MB-42 Water Level Float Switch Hobby Kit
- 1x MB-42 Water Level Float Switch Hobby Kit User's Manual V1.0
Attachment:
Packaging List:
- 1x MB-42 Water Level Float Switch Hobby Kit
- 1x MB-42 Water Level Float Switch Hobby Kit User's Manual V1.0
