Description
Highlight

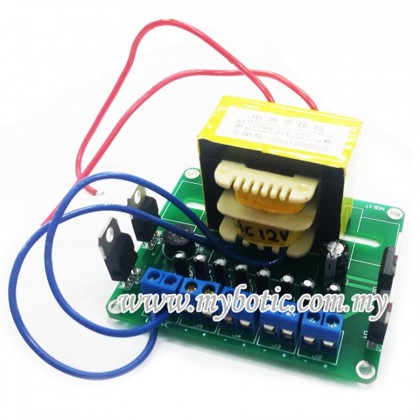

Features:
- Uses AC220V - 240V/AC12V Transformer.
- Uses rectifier bridge to convert from AC to DC voltage.
- This kit is able to to convert the AC power supply to DC power supply.
- 5 Watt 12V transfomer.
- 4 Output which are DC 12V, 9V, 6V and 5V with maximum power 5 Watt.
- Non-programmable kit.
- Self assembly.
- Size: 60 mm x 38 mm
Description:

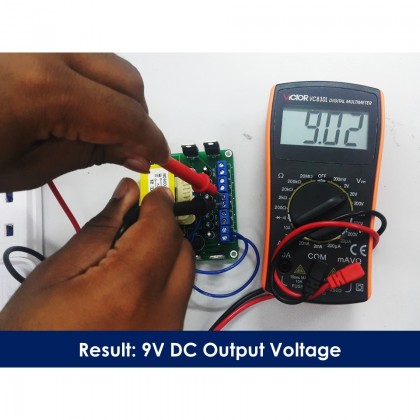

This kit is designed to convert the AC power supply to DC power supply. The input 240V AC voltage converted to four (4) different DC output voltage which are 12V, 9V, 6V and 5V. The AC 240V power supply is connected and turn on. At first, it regulate 12V AC as the voltage in. Then, from 12V AC converted to 12V DC by bridge rectifier. Whereas, there are total of 4 types of output voltage for selection which are 12V, 9V, 6V and 5V. This four (4) output is regulated by voltage regulator. This kit is using 5W 12V transfomer, so the maximum power is 5W. You may increase the power as well by changing the bigger power of transfomer.
Wiring Diagram:
Features:
- Uses AC220V - 240V/AC12V Transformer.
- Uses rectifier bridge to convert from AC to DC voltage.
- This kit is able to to convert the AC power supply to DC power supply.
- 5 Watt 12V transfomer.
- 4 Output which are DC 12V, 9V, 6V and 5V with maximum power 5 Watt.
- Non-programmable kit.
- Self assembly.
- Size: 60 mm x 38 mm
Packaging list:
- 1x MB-17 AC-DC Power Supply Kit
- 1x MB-17 AC-DC Power Supply Kit User's Manual V1.0
User Manual:
What's in the box
Packaging list:
- 1x MB-17 AC-DC Power Supply Kit
- 1x MB-17 AC-DC Power Supply Kit User's Manual V1.0
