RM2.30

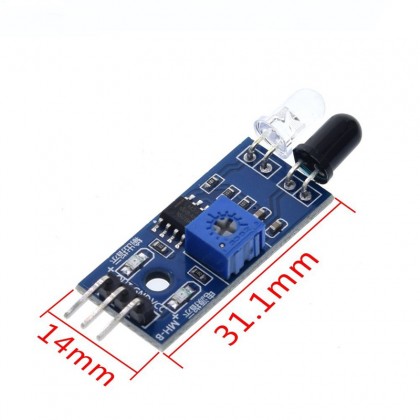

IR Infrared Sensor Obstacle Avoidance Module
Price RM2.30
Product SKU SN-IR-MD
Size (L x W x H) 3 cm x 1.5 cm x 2 cm
Reward Points 2
Points Needed 230
Availability 754
Quantity
Description
Highlight
  • Detection distance: 2-10cm
  • Power supply: 3.3 to 5VDC
  • 3-wire output interface
  • Digital output
  • Signal: Active low
  • Sensitivity (Adjustable)

Description:
The sensor come with 3 pins, respectively is VCC, OUT and GND. The VCC and GND is the power for the sensor to operate. The OUT is the digital output signal from the sensor.When sensor detected obstacle or white surface, the OUT will be LOW. It can be interface with any microcontroller with digital input such as PIC and Arduino Series for line sensing, or even short distance obstacle dectection. Also, not to forget, interface with Relay module offer non-contact switch :)



Specification:

  • Detection distance: 2-10cm
  • Power supply: 3.3 to 5VDC
  • 3-wire output interface
  • Digital output
  • Signal: Active low
  • Sensitivity (Adjustable)
  • Size: 30mm x 14mm x 5mm
  • FREE 3 pieces of jumper wires


Packing list:

  • 1x IR INFRARED SENSOR OBSTACLE AVOIDANCE MODULE



Attachment:

  • IR Sensor Module User's Manual v1.0
  • Arduino Source Code
What's in the box
  • 1x IR INFRARED SENSOR OBSTACLE AVOIDANCE MODULE
