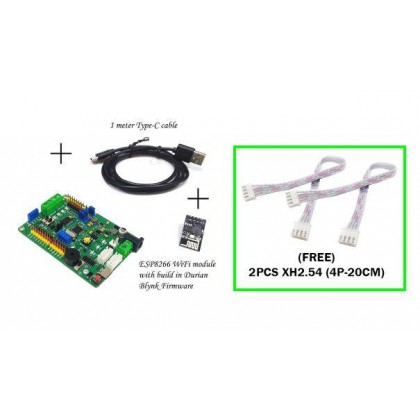

DurianUNOV3
|
|
| Quantity |
|
- Wide Vin Range: 3V to 12V
- Wiring without breadboard
- Build in TB6612FNB motor driver
Looking to upgrade your Arduino Uno for your next IoT project? Look no further than Durian Uno - the ultimate enhancement for your IoT education! With its cutting-edge features and unmatched performance, Durian Uno is the perfect choice for students, teachers, and makers alike.
Durian Uno offers plug-and-play simplicity, so you can get started right away without any complicated setup. Plus, it features a wide range of input voltage, as low as 3VDC, making it ideal for projects that require different power sources.
With its user-friendly interface, you can easily program and control electronic devices using either text-based or block-based coding. This feature is perfect for beginners and primary and secondary school students who are just starting to learn about IoT and microcontroller programming.
So if you're looking for the best way to take your IoT education to the next level, choose Durian Uno - the ultimate enhancement of Arduino Uno! Order yours today and start building your next great project.
Hardware Benefits
1. Wide Range of Input Power Supply and Polarity Protection
Durian UNO V3's wide range of input power supply (DC 3V to 12V) makes it easy to attach different types of batteries such as AAx4, single 18650 Li-ion battery, and so on. While Arduino UNO will be unstable if the input power supply is less than DC 7V.
Durian UNO V1 | Durian UNO V3 | Arduino UNO |
Vin - DC 3.7V - 12V | Vin - DC 3V - 12V | Vin - DC 7V - 12V |
Durian UNO V3 was upgraded with polarity protection which will securely protect the board and battery whenever the positive and negative power supply wire were reversely installed.
2. Various Type of DC Input Connector
You may power Durian UNO V3 via 4 different types of input power supply connector, i.e.
Input DC 3V - 12V
1. Ø 5.5 DC Power Seat
2. Screw Type Terminal Block
3. 2.54mm Pitch Male Header
Input DC 5V
4. Type-C USB
Multi input connectors makes convenient to power Durian UNO V3 with battery holder (AAx2, AAx4 and else), adapter and li-ion battery without adding extra connector
2. Various Type of DC Input Connector
Unlike Arduino UNO, Durian UNO V3's board facilitate user to do wiring installation without using breadboard. It's avoid the messy wiring and make the wiring installation uncluttered.
SAY "GOODBYE" TO BREADBOARD
Durian UNO V3 able to wire the sensor module, servo motor, DC motor, Lamp, I2C LCD and else without breadboard.
4. Function as RC Servo Controller
With Improvement of Durian UNO V3, Durian UNO V3's 5V output current increase to 3.5A compare with previous 2A maximum. It able to drive more than 10 pieces of SG90 micro servo motor simultaneously without causing stability problem.
Also, direct plug and play servo motor on Durian UNO V3 easier user to play their servo motor without many wiring process.
Input Voltage vs Maximum Output Current (5V/VCC Pin)
Input Voltage | 5V Output Current |
3V - 5V | 0.1A - 1A |
5.1V - 9V | 1A - 1.9A |
9.1V - 12V | 1.9A - 2A |
Durian UNO V3 drives 6 pieces of SG90 micro servo motor and 2 pieces of MG995 servo motor with DC 7.4V Li-ion battery.
Durian UNO's wide range of input power supply (DC 3.7V to 12V) makes it easy to attach different types of batteries such as AAx4, single 18650 Li-ion battery, and so on. While Arduino UNO will be unstable if the input power supply is less than DC 7V.
5. Build in Motor Driver
Most of projects involve output such as DC water pump, DC motor, DC stepper motor, and others. To ease the connection of DC motor and water pump, we had built-in TB6612FNG motor driver on Durian Uno V3 (previous version with L298P Motor Driver).
Durian UNO V1 (L298P) | Durian UNO V3 (TB6612FNG) |
Motor voltage 4.5 - 46 VDC | Motor voltage 2.5 - 13.5 VDC |
2A Current | 1.2A Current |
3A Peak Current | 3.2A Peak Current |
Larger module, with heatsink | Small module, no heatsink |
Efficiency 40 - 70% | Efficiency 91 - 95% |
Voltage Drop 1.4 VDC | Voltage Drop 0.05 - 0.13 VDC |
No Standby mood | Low-current Standby mood |
|
D7 | D8 | PWMA | OUT 1 | OUT 2 | MODE |
H | H | H/L | L | L | Short brake |
L | H | H | L | H | CCW |
L | H | L | L | L | Short brake |
H | L | H | H | L | CW |
H | L | L | L | L | Short brake |
L | L | H | OFF | OFF | Stop |
6. Durian UNO V3 Board's abilities
With built in onboard components such as melody buzzer, programmable button, and LEDs make it convenient without additional components.
7. Direct Plug and Play IoT ESP8266, Bluetooth, Ultrasonic and I2C LCD
Common module such as ESP8266, Bluetooth module, Ultrasonic sensor and I2C LCD are able to implement directly on Durian UNO V3.
8. Type-C cable for coding upload
Durian UNO V3 uses Type-C USB interface, Type-C cable is common and easy to get. It transfers data at faster speeds. It is more convenient to connect Durian UNO V3 with computer for the coding upload process.
The Layout of Durian UNO V2 Board

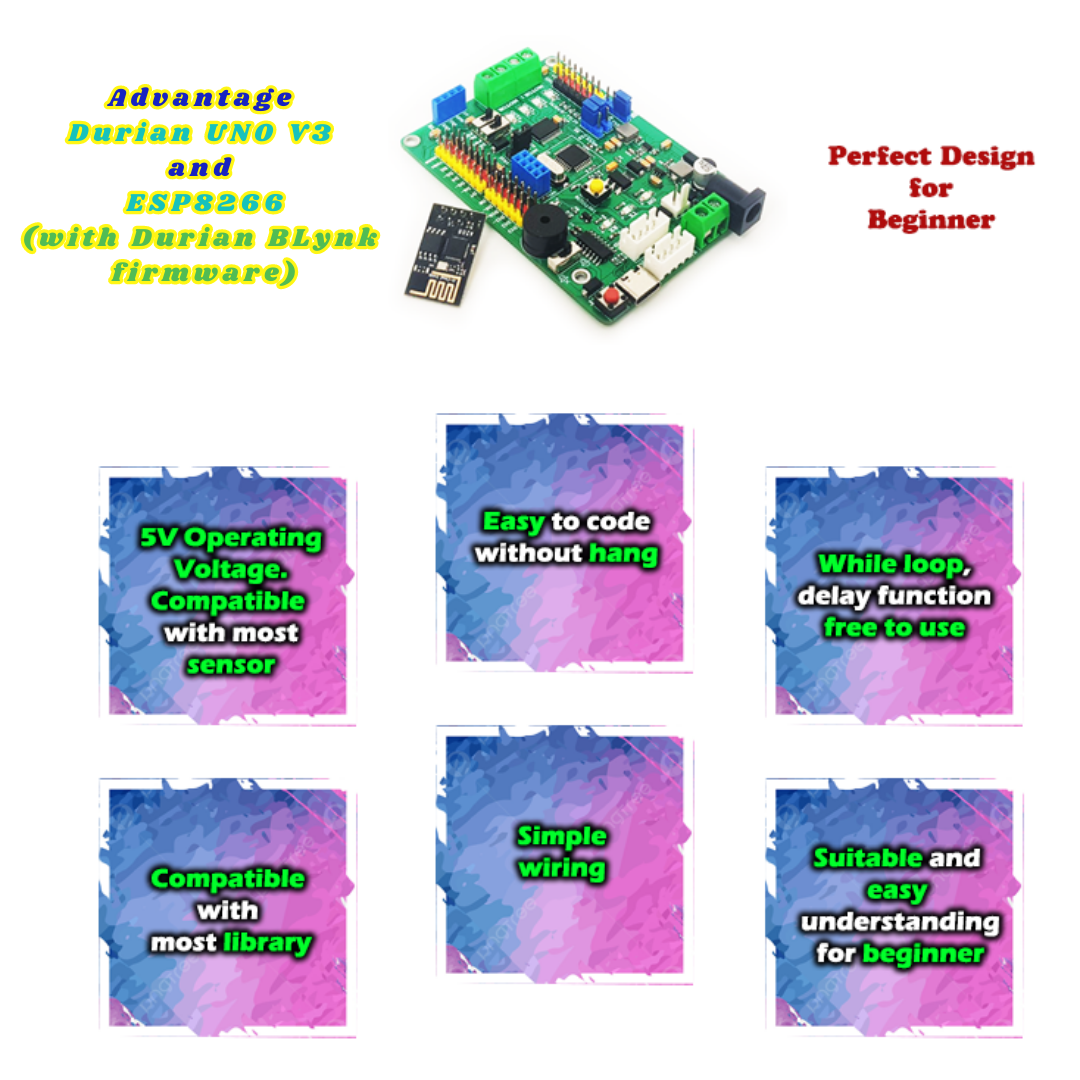

Durian UNO V2 IoT Benefits

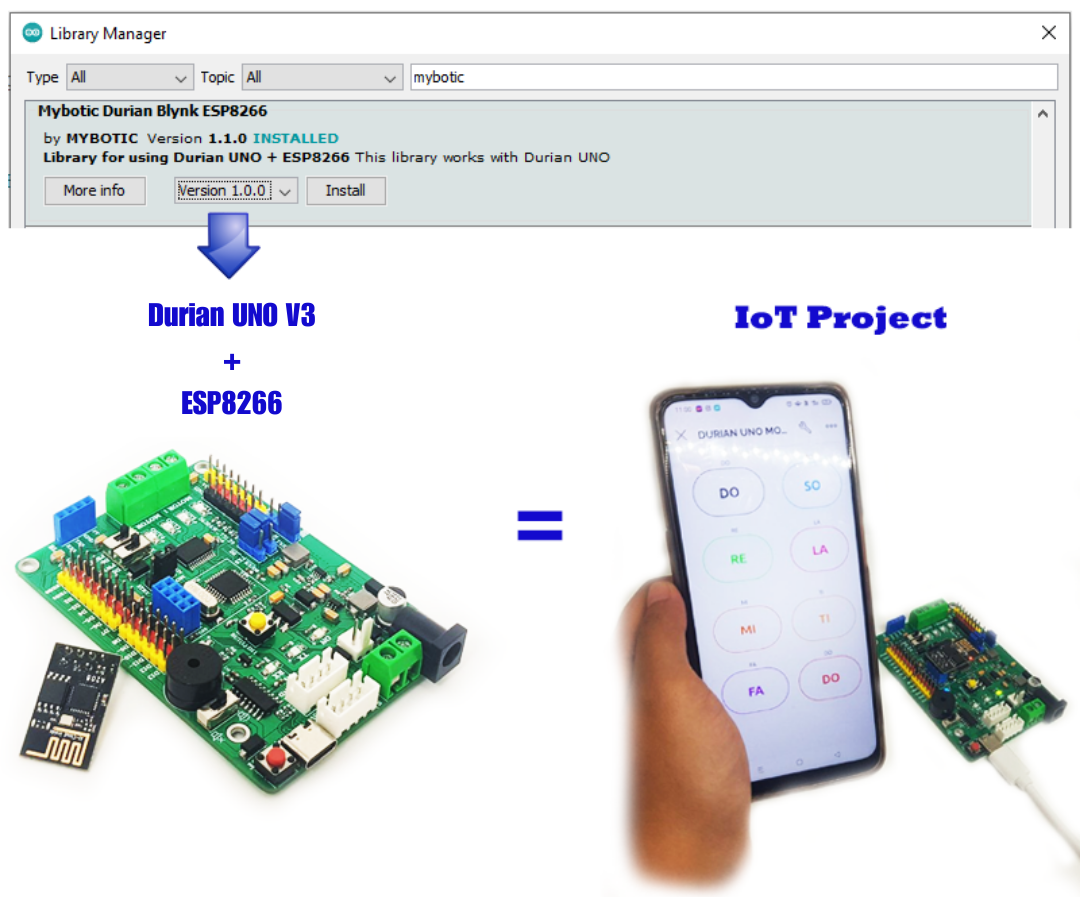

With the library of Durian Blynk ESP8266, Durian Uno works prefer with ESP8266 Wi-Fi module in IOT. With help of Durian Blynk ESP8266 Library, the code is easy to understand, and code troubleshooting becomes easy.
Now, Durian UNO have simulation at Fritzing:
Fritzing software & durian UNO's library:
Comparison Between Arduino UNO and Durian UNO V3
Features | Arduino UNO R3
| Durian UNO V3
|
Micro-controller | ATmega328P | ATmega328P |
Digital I/O Pins | Arduino IDE | Arduino IDE |
Input Voltage | DC 7V to 12V | DC 3V to 12V |
Operating Voltage | DC 5V | DC 5V |
Digital I/O Pins | 20 | 20 |
PWM | 6 | 6 |
Analog Input | 6 (10-bit) | 6 (10-bit) |
UART | 1 | 1 |
SPI | 1 | 1 |
I2C | 1 | 1 |
External Interrupt | 2 | 2 |
Flash Memory | 32 KB | 32 KB |
SRAM | 2 KB | 2 KB |
EEPROM/Data Flash | 1 KB | 1 KB |
Clock Speed | 16 Mhz | 16 Mhz |
DC Current per I/O Pin | 20 mA | 20 mA |
Power Supply | DC Adapter or USB | USB, DC Adapter, Battery |
DC Current for 5V | 1 A | 3.5 A |
DC Current for 3.3V | 50 mA | 1 A |
USB to Serial Chip | ATmega16u2 | CH340G |
Programmable LED | 1 X at Pin 13 | 5 X at digital Pin 7,8,9,10,13 |
Programmable Push Button | No | 1 X at digital Pin 11 |
Piezo Buzzer | No | 1 X at digital Pin 4 |
Motor driver | No | 6 X at digital Pin 5,6,7,8, 9, 10 |
Attachment:
- CH340 Driver
o Linux (V1.5) - (Normally is readily installed)
o CH34X Driver - Get the latest driver from the factory
Project Example :
1.SMART CONTACTLESS DUSTBIN WITH LCD USING DURIAN UNO (ENHANCEMENT OF ARDUINO UNO)
Materials include:
- Durian UNO - Enhancement of Arduino UNO for IOT project education
- TCRT5000 IR Sensor Line Following Module
- 5v HC-SR04 Ultrasonic Ranging Module
- SG90 Micro Servo Motor 9g ( 180 degree )
- Arduino I2C Serial LCD 16x2 (Blue backlight)
- 2020 XH2.54 DOUBLE HEADER RED WHITE CABLE 4P (20CM) (2pcs)
- Arduino Jumper Female-Female, 20cm (10pcs)
2.IOT CAR WITH BLYNK DURIAN UNO (ENHANCEMENT OF ARDUINO UNO)
Materials include:
- Durian UNO ESP8266 Wifi Module (Built in Durian Blynk Firmware),Type C cable
- 2wd car chasis and accessories (Motor with 15CM wire)
- 4 x AA Battery Holder with on/off switch and connector
- 4 x GP Battery
3.ARDUINO IOT SMART PATIENT MONITORING SYSTEM WITH BLYNK DURIAN UNO (ENHANCEMENT OF ARDUINO UNO)
Materials Include:
- Durian UNO,ESP8266 Wifi Module (Built in Durian Blynk Firmware),Type C cable
- LM35 Analog Temperature Sensor Module
- Arduino I2C Serial LCD 16X2
- 2020 XH2.54 Double Header Red White Cable 4P 15cm
- MAX30100 Heart Rate & Pulse Oximetry Sensor Module
4. IOT SMART HOME WITH ALARM SYSTEM DURIAN UNO (ENHANCEMENT OF ARDUINO UNO)
Materials include:
- Durian UNO, ESP8266 Wifi Module (Built in Durian Blynk Firmware), Micro cable type C
- PIR Motion Sensor Module
- 5V LED
- 130 Clover Motor Fan (80mm)
- 1.5-6V R300C Mini DC Motor RPM3500
- Arduino Breadboard Dupont Jumper Wire 10P; 10 CM Female to Female
5. DURIAN OBSTACLE AVOID MOBILE ROBOT WITH ULTRASONIC SENSOR (ENHANCEMENT OF ARDUINO UNO)
Materials include:
- Direct connect to output without external components
- Easy to code IoT
- Code with Arduino IDE
- Uses Blynk App for IoT
