DIY STEM Project Kit: Facemask Detector Compatible Arduino Uno Kit 【Mybotic Hobby Kit Series】
Price RM318.00
Product SKU FCE-MSK-DTC-1
Size (L x W x H) 10 cm x 5 cm x 12 cm
Points Needed 25000
Availability 2
Quantity
Description
Highlight
  • Plug and Play Hobby Kit
  • Arduino UNO Compatible
  • Circuit Schematic diagram provided
  • Arduino and ESP32-CAM Code provided
  • Wide range of input voltage: 7 - 12VDC
  • Current consumption:
    • Normal condition: 180mA
    • With servo operating: 250mA



Description:

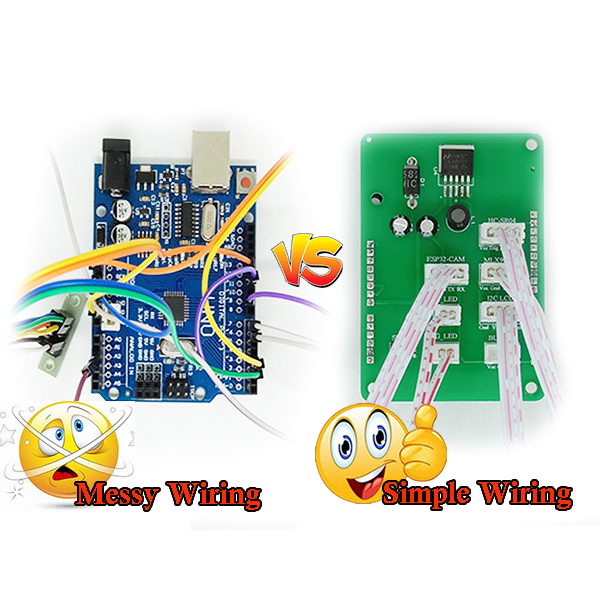

DIY STEM Project Face Mask Detector Compatible with Arduino UNO is a kit that helps to deals with messy wiring and troubleshooting. We provide an easy solution to the messy wiring and troubleshooting the project with Plug and Play Hobby Kit set. This kit also comes with temperature sensor, MLX90614 Infrared Temperature Sensor. So, the person need to scan their body temperature and face mask before can pass the check. With this kit, user need to scan for the body temperature first before can proceed to scan face mask. If the termperature of the person is too high or too low, which is below than 35"C or higher than 39"C, they could not proceed to the face mask scan. But if they passed the body temperature scan, they need to scan for their face mask. In this scan, the person need to stand between 35-60cm from the camera for the best view for the camera to scan and if the person is not within this range, the camera could not intiate the scan. Then, if the person failed the scan after 5 times, they need to scan their body temperature again before proceed. If they would passed all the scan, servo would open the door and person is allowed to pass.












Compatible with Arduino Compatible Dccduino Uno R3 for this Facemask Kit:





Using XH2.54 Double Header Red White Cable type for connecting the I/O for Facemask Kit:







Easiest Installation and systematic for the User's, save more time for wiring and the installation for this kit:







Features:

  • Plug and Play Hobby Kit
  • Arduino UNO Compatible
  • Circuit Schematic diagram provided
  • Arduino and ESP32-CAM Code provided
  • Wide range of input voltage: 7 - 12VDC
  • Current consumption:
    • Normal condition: 180mA
    • With servo operating: 250mA
  • Self Assemble Kit


Packaging List:






Schematic Diagram:







Attachment:
